EdenHMI-10 HTML5 Touchscreen HMI

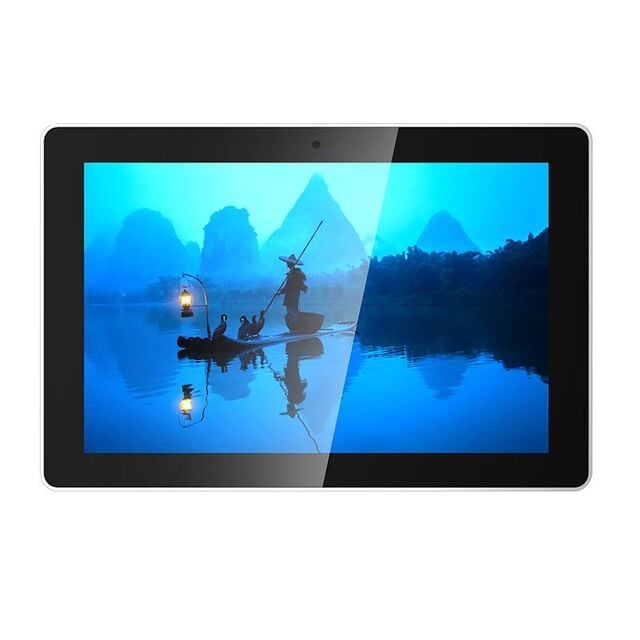

EdenHMI HTML5 touchscreen HMI front product photo

Dedicated HTML5 Touchscreen for BAS and HVAC Dashboards

EdenHMI-10 gives contractors and building operators a simple local interface for web-based HVAC and building automation systems.

Deploy a fixed touchscreen for HTML5 BAS and HVAC interfaces without leaving behind a laptop, consumer tablet, or custom workstation.

USD

Display Size

Partner / Bulk Inquiry

1-Year Warranty

Common Bundle Uses

EdenHMI is designed to be added to BAS, HVAC controls, retrofit, and service projects where a dedicated local web interface is useful.

BAS dashboard display for mechanical rooms

Local operator interface for HVAC equipment pages

Boiler, chiller, AHU, and pump room display

Facility owner dashboard without a dedicated workstation

Retrofit upgrade for buildings that need simple local BAS access

Key Features

10.1" LCD Touchscreen

High-resolution 1280×800 display with 10-point capacitive touch and 350cd/m² brightness for clear visibility

Plug and Play Ethernet HMI

Connect via Gigabit Ethernet and get started immediately - no complex setup required

Built-In HTML5 Browser

Full HTML5 support for modern web-based building automation interfaces and dashboards

Network Configuration Tool

Embedded tool for quick and easy network setup - configure IP settings without external software

Field-Ready Deployment

Includes the essentials for fixed local display projects: mounting hardware, power supply, Ethernet connectivity, and quick network setup

Industrial Design

Fanless aluminum CNC case for fixed mechanical-room and BAS display deployments

For Integrators & Distributors

EdenHMI gives BAS integrators, HVAC controls contractors, and distributors a simple hardware add-on for projects that need local access to web-based dashboards and equipment pages.

Project Add-On

Add a dedicated local touchscreen to BAS and HVAC controls projects without deploying a full workstation.

Retrofit Upgrade

Give existing facilities a clean local interface for web-based dashboards, equipment status pages, and operator views.

Contractor-Friendly Deployment

Ethernet connectivity, included power supply, and field-friendly network configuration.

Interested in bundling EdenHMI? Contact us.

Technical Specifications

1 Display Specifications

Screen Size: 10.1 inches
Resolution: 1280 × 800 pixels
Brightness: 350 cd/m²
Touch Technology: 10-point capacitive
Display Type: TFT LCD

2 Processing & Memory

Processor: BCM2712 Quad-core
CPU Speed: 2.4 GHz Arm Cortex-A76
RAM: 4GB LPDDR4
Storage: 32GB SD card
Cooling: Fanless design

3 Ethernet Connectivity

Interface: RJ45 Ethernet Port
Speed: 10/100/1000 Mbps
Standards: IEEE 802.3
Configuration: Static IP
Cable Type: Cat5e/Cat6 (not included)

4 Physical & Environmental

Dimensions (W×D×H): 258 × 172 × 38 mm
Case Material: Aluminum CNC + Sheet metal
Operating Temp: -20°C to +60°C
Power Input: 5VDC via USB-C
Max Power: 25W

Documentation

Online Documentation User Manual Datasheet

Why not just use a tablet?

EdenHMI is built for fixed BAS and HVAC display use cases where contractors want a dedicated local interface instead of leaving behind a consumer tablet, laptop, or custom PC.

Mounted, always-available interface

Ethernet-connected local network access

Built for fixed mechanical-room use

No consumer tablet account or app workflow

Frequently Asked Questions

Common questions about the EdenHMI

Is EdenHMI a controller?

No. EdenHMI is a dedicated HTML5 touchscreen interface. It is intended to display web-based BAS, HVAC, and equipment dashboards. It does not replace your BAS controller, field controller, PLC, or supervisory platform.

Does EdenHMI require a specific BAS platform?

No. EdenHMI works with HTML5 web interfaces and is intended for web-based BAS, HVAC, and equipment dashboards across compatible systems.

Can contractors buy multiple units?

Yes. Contractors, integrators, and distributors can contact us about bulk pricing, project pricing, and bundling opportunities.

Is remote access included?

EdenHMI is focused on local HTML5 display access. Remote access options may be supported through the building’s existing secure network, VPN, or remote-access architecture. Contact us if you are evaluating a remote-support bundle.

How difficult is the installation process?

Installation is straightforward. Simply mount the unit using the included hardware, connect power via the included USB-C adapter, connect Ethernet, and use the built-in network configuration tool to set your IP address. The interface is intuitive and designed for field technicians. Full installation manual is included with step-by-step procedures and mounting instructions.

What's included in the box?

Each EdenHMI package includes the HMI touchscreen unit, 5VDC USB-C power supply, mounting hardware, quick start guide, and warranty documentation. Ethernet cable is not included; use a standard Cat5e/Cat6 cable.
